AIS: alanine dipeptide in explicit water¶
Tested against md-tools 0.6.1. Every command and every number on this page comes from a
run executed as written, at that version.
Annealed importance sampling (AIS) for alanine dipeptide (ACE-ALA-NME), starting from the sequence and ending with a reweighted φ/ψ distribution. Every command below was run exactly as written on one NVIDIA RTX 3080, with CUDA and mixed precision, and every number is copied from the files that run produced.
The whole thing took about 10 minutes. Building took 3 s and scaling 1 s. The chain from minimisation to the last switching path took 9 min 44 s.
What AIS does here¶
There are two end states with the same atoms and different parameters:
- V0 is the solute with its interactions scaled down (REST2 scaling at τ = 0.5), so its torsion barriers are lower and it moves more.
- V1 is the ordinary, physical System.
md-tools first runs ordinary MD on V0, called the source ensemble. It then starts many short switching paths from frames of that ensemble. Along each path the potential is
λ moves in small steps at frozen coordinates, and dynamics runs between steps. Each λ step adds
work, ΔW = Δλ·(V1 − V0)(x). A path ends as a configuration of V1, but it is not a sample of
V1, because the switch was too fast for the system to relax. Give each endpoint the weight
exp(−βW) and the endpoints together estimate V1's equilibrium distribution (Jarzynski; Neal's
annealed importance sampling). Step 6 does exactly that.
The hot state keeps two things at full strength. Amide ω torsions stay unscaled, so the ensemble never visits a cis peptide bond that V1 would almost never sample. Impropers stay unscaled too. The scaler decides this when it builds V0 (see REST2). AIS itself only interpolates between two files. See AIS.
1. The dataset root and the system¶
ALA.seq gives the peptide as residue names, in order:
build-top.config:
solute:
kind: peptide
solvent:
model: TIP3P
padding_nm: 1.5
hydrogen_mass_repartitioning:
enabled: true
md-openmm build-top -i ALA.seq \
-os built.xml -op built.pdb -log built.log --config build-top.config
cd .. # ALA/
tleap builds the capped peptide from the sequence, and build-top solvates it. From built.log:
HMR applied, target 3.024 amu, recommend 4.0 fs
Counts
------
atoms 1796
residues 597
solute atoms 22
waters 590
ions {'NA': 2, 'CL': 2}
forcefield amber14-all.xml
The box is a rhombic dodecahedron of 19.1 nm³. Hydrogen mass repartitioning lets every later stage
run at 4 fs. timestep_fs: auto reads that from the masses in the System, not from the configuration.
2. Build the two end states¶
Both end states are saved as files, written once by one scaler run.
build/scaler.config names the two taus:
md-openmm build-top --rest2-scaler -s build/built.xml -p build/built.pdb --config build/scaler.config
It writes build/AIS/:
build/AIS/
├── system_state0.xml tau 0 -- V1, the physical end state
├── system_state1.xml tau 0.5 -- V0, what the source ensemble samples
├── scaler.yaml what each state is and how it was made (sha256 of every file)
├── scaler.log the same, for a person
└── protein-unscaled.png what stays unscaled, drawn
From scaler.log:
schedule linear, 2 state(s), tau 0.0 .. 0.5
solute 22 atom(s)
unscaled torsions amide omega 2 bond(s), aromatic ring 0 bond(s), double bond 0 bond(s), impropers 2 term(s)
14 torsion term(s) unscaled, 28 scaled
picture of protein protein-unscaled.png (ACE-ALA-NME: red = unscaled torsions across bond(s) 4-6, 14-16; 2 improper centre(s))
States
------
system_state0.xml tau 0.0 (1-tau)^2 1.000000 1-tau 1.000000
system_state1.xml tau 0.5 (1-tau)^2 0.250000 1-tau 0.500000
The state index follows τ; the V-number follows λ. They run opposite ways.
system_state<i> ascends with τ in every method, so state 0 is the τ = 0 Hamiltonian here
exactly as it is in a REST2 ladder, and scaler.yaml records state0_is_physical: true
rather than leaving it to be read off a filename.
V0 and V1 are the λ endpoints, not τ values: λ runs 0 → 1 from V0 to V1, and V0 is
whichever state the source ensemble was sampled from. For an anneal-to-physical switch that
is the scaled one, so:
| λ | τ | file | |
|---|---|---|---|
| V0 — source, scaled | 0 | 0.5 | system_state1.xml |
| V1 — physical | 1 | 0 | system_state0.xml |
The digits invert, and that is not an accident to be tidied away: τ is a property of the
files, λ is a property of the run. Before 0.6.1 AIS wrote only the scaled state, as
system_state0.xml, which made state 0 unphysical for AIS and physical for REST2. An old
tree must be rebuilt; build-top --rest2-scaler refuses the old n_states: 1 schedule by
name and says so.
Writing both end states from one scaler run also means scaler.yaml carries a digest for each,
instead of V1 being an unrecorded reference to build/built.xml.
protein-unscaled.png marks in red both amide C–N bonds, ACE–ALA (4–6) and ALA–NME (14–16). Every
torsion about those bonds keeps its full strength in V0. The numbers are atom indices.
The heated torsions are the other 28 terms, including φ and ψ, which are what this tutorial measures.
3. One configuration for the whole chain¶
AIS.config at the dataset root:
protocol: AIS
solvent: explicit
dynamics:
tau: 0.5 # a claim about build/AIS/, checked against scaler.yaml
timestep_fs: auto # 4 fs, because the System's masses show HMR
temperature_K: 300.0
seed: 20260917
stages: # the source chain, all on V0 except minimisation
minimization_iterations: 1000
restrained_nvt_steps: 25000 # 100 ps
restrained_npt_steps: 25000 # 100 ps (run at fixed volume: see below)
unrestrained_npt_steps: 25000 # 100 ps (run at fixed volume)
production_steps: 500000 # 2 ns of hot MD: the source ensemble
reporting:
crd_printout_solute: 250
crd_printout_whole: 5000 # a whole-system frame every 20 ps: 100 source frames
info_printout: 250
checkpoint_printout: 2500
ais:
number_of_paths: 64
switching_steps: 5000 # 20 ps per path
observation_interval_steps: 250
parameter_update_interval_steps: 1
ais_source:
generate: true # run the source ensemble in this chain
first_frame: 5 # skip the first 100 ps of it
selection: evenly_spaced
collective_variables:
generate: all_solute_torsions # write cv.yaml naming every solute torsion
interval_steps: 250
Three parts do what earlier releases left to you:
ais_source.generate: trueruns the source ensemble in the samerun.sh, before the switching paths start. The paths read that run's whole-system trajectory,whole_prod1.nc.collective_variables.generate: all_solute_torsionshasbuild-mdwrite the CV file itself. It lists every proper torsion of the solute by explicit atom selector, 41 of them here. The result is an ordinarycv.yaml: copy it, delete lines and name the copy incollective_variables.fileif you want fewer.dynamics.tau: 0.5scales nothing. It is a claim aboutbuild/AIS/system_state1.xml, and every hot stage refuses if the scaler record disagrees with it. A scaled run is fixed-volume throughout, so the two "NPT" equilibration stages run as NVT and are named that way.
From AIS-run1/build-md.log:
Stages
------
min 1000 iterations
eq_nvt_posres 25000 steps, NVT
eq_nvt_posres_2 25000 steps, NVT
eq_nvt_free 25000 steps, NVT
source 500000 steps, NVT
AIS
---
paths 64
lambda 0 -> 1: V0 (-s/-p) -> V1 (-s2/-p2), linear
switching 5000 steps
observations 21 (both endpoints included)
source whole_prod1.nc
The generated run.sh minimises the unscaled System. min/ sits beside build/ and is shared
by every method run on this system, so it never depends on one method's scaled state. Every later
stage runs on V0:
SCALED_SYSTEM="${HERE}/../build/AIS/system_state1.xml" # V0, tau 0.5
V1_STATE="${HERE}/../build/AIS/system_state0.xml" # V1, tau 0
echo "== min =="
md-openmm md-run -i ../input/min.in \
-p "${TOPOLOGY}" -s "${SYSTEM}" \
-odir ../min "$@"
echo "== eq_1 =="
md-openmm md-run -i ../input/eq_1.in \
-p "${TOPOLOGY}" -s "${SCALED_SYSTEM}" \
-c ../min/min.xml \
-odir eq "$@"
...
echo "== source =="
md-openmm md-run -i ../input/source.in \
-p "${TOPOLOGY}" -s "${SCALED_SYSTEM}" \
-c eq/eq_3.xml \
-odir . "$@"
...
echo "== AIS =="
"${LAUNCH[@]}" md-openmm md-run -i ../input/AIS.in \
-p "${TOPOLOGY}" -s "${SCALED_SYSTEM}" -p2 "${TOPOLOGY}" -s2 "${V1_STATE}" \
-o AIS.out -log AIS.log "$@"
The AIS call names both end states: -s/-p is V0, and -s2/-p2 is V1.
4. Run it¶
| stage | what | wall time |
|---|---|---|
min |
1000 iterations, unscaled System | 0.9 s |
eq_1, eq_2, eq_3 |
100 ps each on V0 | 8.2, 8.1, 8.0 s |
source |
2 ns on V0, 1241 ns/day | 139.4 s |
AIS |
64 paths × 20 ps | 418.9 s |
It ended with run.sh: all stages reported completion. The paths are independent, so
NPROC=4 ./run.sh with four GPUs splits them four ways. Path n writes the same files whatever the
worker count.
What the AIS log checks before it switches anything¶
From AIS.log:
End states
----------
V0 .../build/AIS/system_state1.xml (.../build/built.pdb) -- the source ensemble's state
V1 .../build/built.xml (.../build/built.pdb)
mixed forces NonbondedForce, PeriodicTorsionForce
shared forces 3 identical in both, added once
Path
----
lambda 0 -> 1 (linear): V(lambda) = (1 - lambda) V0 + lambda V1
switching 5000 steps = 20 ps at 4.0 fs
parameter updates 5000 (every 1 step)
observations 21 (work, every 250 steps, both endpoints included)
ensemble fixed volume; no barostat
Source ensemble
---------------
trajectory whole_prod1.nc (NETCDF)
frames 100 total, 95 eligible (frames 5..99 inclusive)
selection evenly_spaced
source ensemble V0, CONFIRMED: whole_prod1.nc records the System digest 88a032553a0afca1..., which is -s
velocities not read from the source; each path draws fresh Maxwell-Boltzmann momenta at 300.0 K with its own recorded seed
- mixed / shared forces. Only the forces that differ between V0 and V1 are interpolated. Bonds, angles and the motion remover are identical in both files, so they are added once. md-tools refuses two Systems that differ in atoms, masses, constraints, box, barostat or force layout.
- CONFIRMED. The source stage wrote the sha256 of the System it integrated into
whole_prod1.nc, and it matchessystem_state1.xml(the digestscaler.yamlrecords). The paths therefore start from an ensemble of exactly the V0 they switch from. A source trajectory from somewhere else, with no digest, reads asserted instead.
Which frames were used
evenly_spaced divides the 95 eligible frames by the 64 paths and rounds down, giving a stride
of 1. The paths therefore started from frames 5 to 68 (see selected_source_frames.csv), and
frames 69 to 99 went unused. Frames are 20 ps apart, so neighbouring paths still start from
different configurations. If you want the whole window covered, ask for a path count that
divides it, or use selection: uniform_random.
5. The output¶
AIS-run1/
├── whole_prod1.nc, solute_prod1.nc the source ensemble (V0)
├── source.cv.csv all 41 torsions over the source run, every 250 steps: 2001 rows
├── AIS_paths.csv one row per path: total work
├── AIS_work.csv one row per observation: λ before/after, ΔW, V0 and V1 potentials
├── AIS_cv.csv all 41 torsions, per path, per observation: 64 × 21 rows
├── AIS_traj0000.nc ... 0063.nc each path's frames
└── cv.7b88827513ab.yaml the generated torsion list, content-addressed
AIS_work.csv also allows a check without trusting md-tools. potential_direct_kj_mol is V(λ) at
the saved frame, so it must equal (1 − λ)·potential_v0_kj_mol + λ·potential_v1_kj_mol. At
observation 0, λ = 0, and on path 0 both sides are -24835.858…. A work row sums all 250 λ steps
since the previous observation, each taken at the coordinates of its own step. It is therefore not
Δλ × (V1 − V0) of the saved frame.
From AIS.out, the first rows of the path table:
path frame obs frames W kJ/mol reduced
----- ------- ----- ------- ------------- -----------
0 5 21 21 -133.9089 -53.6851
1 6 21 21 -131.6082 -52.7628
2 7 21 21 -133.5538 -53.5428

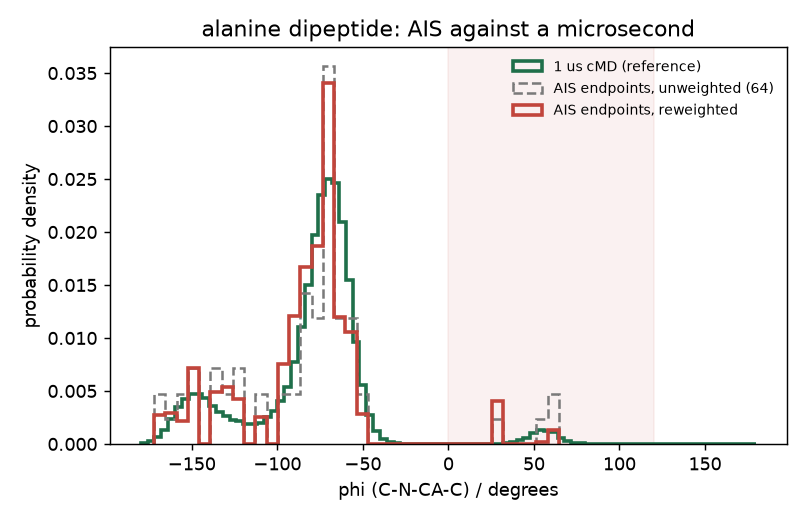

6. Reweighting the torsions, against a microsecond¶
Each path ends as a configuration of V1 but is not a sample of V1 — the switch was too fast for
the system to relax. Weighting each endpoint by exp(−βW) recovers V1's equilibrium distribution
(Jarzynski). The question is whether it actually does, and on this system that can be checked
against a 1 µs unbiased run.
| time in the αL basin | |
|---|---|
| AIS endpoints, unweighted | 6.25% |
| AIS endpoints, reweighted | 3.59% |
| 1 µs cMD — the reference | 2.76% |
The weights do their job. The raw endpoints over-populate αL by more than a factor of two, because they started from a hot ensemble in which that basin is cheap and 20 ps of switching does not undo that. Reweighting moves the occupancy from 6.25% down to 3.59%, against a true 2.76% — most of the way, in the right direction, without ever having been told the answer.
It does not land exactly, and the reason is the sample rather than the method: 64 paths put only a handful of endpoints in that basin, so the occupancy carries roughly half its own value as uncertainty. 3.59% and 2.76% are the same number at this sample size. The shape of the curve is informative; the height of any single bin is not.
| Kish effective samples | 37.7 of 64 |
| work spread | 10 kJ/mol, about 4.1 kT |
| ΔF (Jarzynski, V0 → V1) | −135.2 kJ/mol (−54.2 kT) |
ESS 37.7 of 64 means no small group of paths dominates the weights — the narrower the work distribution, the closer that number stays to the path count, and if it drops below about a tenth of the paths the estimate is resting on a few rare trajectories. (That is exactly what happens on larger solutes: the chignolin folding run scales 138 atoms instead of 22 and returns an ESS near 1.)
ΔF is F(V1) − F(V0), the free energy of restoring the solute's interactions to full strength. It checks the method; it is not a physical observable of the peptide.
The amide stays trans throughout. ACE1_CH3_C_N_CA, the ACE–ALA ω, is within 90° of trans in
all 2001 source rows and in all 64 endpoints, and so is ALA2_CA_C_N_C. That is the unscaled amide
from step 2 doing its job: a hot state that isomerised it would hand the switch a geometry the
physical state never visits.
Next¶
- the same chain for a small molecule: AIS: paracetamol
- the method, the work convention and every file: AIS
